Packaging Bag Leak Detection System to protect product safety and quality
| MOQ: | 1 |
| 価格: | Negotiations |
| 標準パッケージ: | 木製ケース |
| 配達期間: | 40 |
| 支払方法: | LC、T/T |
Packaging Bag leak detection system
,Packaging Bag Leak Detection Machine

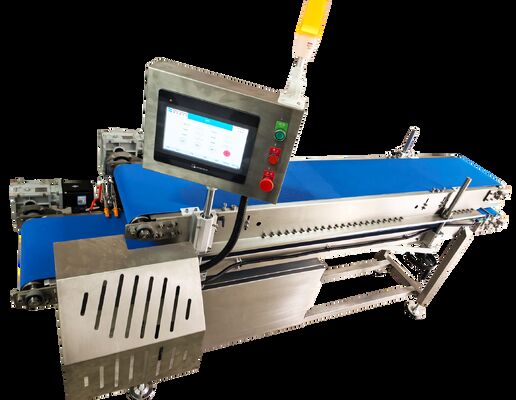

This Online Air Leak Detector is specifically designed to identify air leaks in packaging bags resulting from issues such as poor or incomplete sealing, material entrapment, perforations, material damage, or insufficient inflation. It can be seamlessly integrated into automated packaging lines or used for manual feeding, with defective products being automatically rejected to ensure consistent quality control.
Applications:
- Leak detection in vacuum-packed cooked food, coffee, and nuts;
- Sealing control of nitrogen-filled potato chip bags and dairy product bags;
- Preventing bulging, mold growth, or nutrient loss due to poor sealing.
| Product Name | Online AirLeakdetector |
| Bag Size: | Length 20-300mm, Width10-280mm, Thickness10-200mm |
| DetectionSpeed: | 40-150 bags/min |
| Applicable Products | Inflated/semi-inflatable bagged products |
| Power | 1.5kw |
| PowerSupply | Single-phase 220V 50Hz |
| CompressedAir | 200L/min (forrejecting defective products) |
| weight: | about 190kg |
-
It employs a direct pressure testing method using a pre-extrusion process to test packaging bags, effectively solving various sealing problems.
-
It is equipped with dual sensors for multi-dimensional data acquisition and incorporates a high-performance algorithm to ensure high-precision output.
-
It features a self-learning function, eliminating the need for complex parameter settings. Simply place the product according to the on-screen prompts, and the machine will automatically configure the parameters.
-
Both upper and lower conveyor belts are driven by liquid storage tanks, facilitating speed adjustment and ensuring synchronized operation.
-
It features a user-friendly human-machine interface for easy operation.
Origin: Shanghai
Applications: Suitable for muffins, biscuits, bread, and similar bakery products in food production factories and industrial bakeries
